WIRE ROPE DESTRUCTIVE TESTING
EIWAA Marine Services offers Wire rope destructive testing services for wire rope renewal and wire rope certification services. After wire rope sampling of the required length for wire rope destructive testing; the wire rope shall be subjected to break load testing in order to know the strength and MBL of the wire rope. Onboard socketing services of wire rope, NDT Inspection and subsequent load testing shall be performed by lifting technicians and riggers. EIWAA Marine Services offers Wire rope destructive testing services and Wire rope socketing services in Saudi Arabia for providing wire rope renewal services. Wire rope destructive testing services after socketing and NDT (Non-Destructive Testing) inspection involve verifying the integrity and quality of the wire rope by conducting physical tests to assess its mechanical properties. After socketing and NDT inspection, retrieve the wire rope from the testing equipment or storage area.
Wire rope Destructive Testing Services is used for the pedestal crane wire rope renewal after the pedestal crane load testing services in Saudi Arabia. On destructive testing of wire rope shall be performed by either by Magnetic rope testing or Wire rope MFL Inspection services. Wire rope socketing, sampling, destructive testing, spooling, and crane wire rope reeving are all included in the wire rope renewal process as part of the safety inspection services. Lifting lug inspection Services, pad eye load testing, pull-out testing, pedestal crane load testing services, bollard pull testing, anchor bolt pull testing are few examples of onboard testing services.
WHY CHOOSE LIFTING TECHNICAL SERVICES
EIWAA Marine Services offers Lifting Technical Services in the offshore industry subsequent to/following the load testing inspection and lifting equipment inspection Services. Lifting Technical Services is a one-stop solution for Wire rope Socketing, High-Pressure Lubrication, Wire rope spooling by winches with back tension, and Wire rope Destructive Test.
WIRE ROPE SOCKETING SERVICES IN SAUDI ARABIA

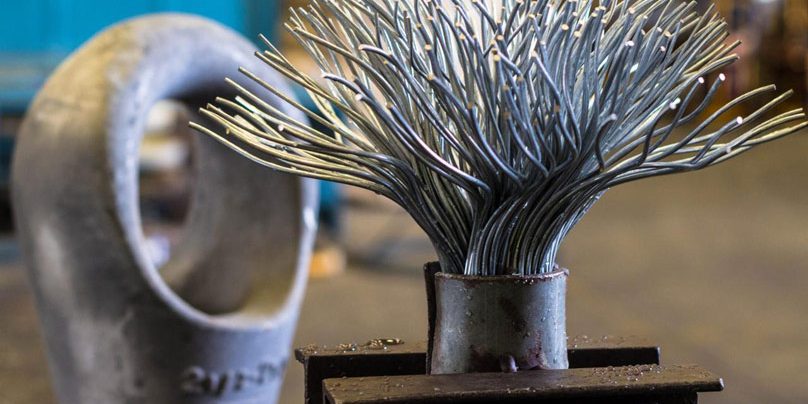

In Saudi Arabia, wire rope socketing services refer to the process of attaching a wire rope to a socket or a terminal, which is typically used in various industries such as construction, oil and gas, mining, and transportation. Wire rope socketing services involve the steps of Socket preparation, Wire rope preparation, Socketing, Wire rope testing and inspection. The socket or terminal is prepared by cleaning and deburring it to ensure a smooth surface for the wire rope. Attaching wire ropes to sockets or terminals using various techniques, such as mechanical or chemical bonding. The wire rope is cut to the required length and stripped of its outer coating or insulation. The wire rope is then inserted into the socket or terminal, and a mechanical or chemical bonding process is applied to secure the wire rope in place. The wire rope socket is subjected to various tests and inspections to ensure its integrity and quality, such as visual inspection, tensile testing, and electrical testing.
WIRE ROPE SPOOLING SERVICES
Steel wire rope spooling services in Saudi Arabia provides crane wire rope reeving as well as removal of wire rope from crane to drum winches for maintenance as well as replacement works. Crane wire rope reeving services is crucial in many aspects to avoid tangles, kinks, and damage to the rope. Our 45-ton and 85-ton spooling winches can be utilized for the wire rope reeving of upto 62mm dia. rope. Spooling winches are diesel-driven with sufficient back tension requirement to control the tension/speed of wire rope when it is under-relieving. After despooling or removal of wire ropes from winches/cranes, our lifting technicians cut approx.7 meter from the wire rope and perform the socketing at onboard for end terminations. Removed wire rope of 7m length shall be subject to break load testing services at the test bed. Our Wire rope NDT Inspection equipment working under MFL/EMAG technology is used for Wire rope Inspection Services as well as Wire rope Renewal Services. Wire rope Testing Services in Saudi Arabia cover the scope of Magnetic Rope Testing or MRT Inspection Services. Our EMAG Inspection Services includes MRT Inspection Services of up to 72 mm wire rope dia.
FREQUENTLY ASKED QUESTIONS
Lifting Technical Services in Saudi Arabia mainly targeting for offshore contractors, marine contractors, ship owners and vessel owners, etc. All the lifting maintenance services are in compliance with LEEA, PUWER, LOLER and IACS Marine classification societies. Lifting Technicians performing jobs at ARAMCO approved ports of Saudi Arabia.
In Saudi Arabia, wire rope inspection and certification refer to the process of evaluating the condition and integrity of wire ropes used in various industries, such as construction, oil and gas, mining, and transportation. The wire rope is visually inspected for any signs of damage, wear, or corrosion. The wire rope’s dimensions, such as diameter, length, and number of strands, are measured. The wire rope’s mechanical properties, such as tensile strength and elongation, are tested using specialized equipment. Based on the results of the inspection and testing, the wire rope is certified or declared fit for use or not fit for use.
In Saudi Arabia, the purpose of wire rope socketing services is to ensure the safe and reliable operation of wire rope-based systems in various industries. The purpose of wire rope socketing services is to secure the wire rope in place, so the risk of accidents or equipment failure is minimized. Wire rope socketing services can help improve the performance of the wire rope by ensuring that it is properly secured and aligned. Wire rope socketing services can help extend the lifespan of the wire rope by reducing wear and tear caused by loose or misaligned connections. Wire rope socketing services can help prevent damage to equipment, structures, and other components by ensuring that the wire rope is properly secured and controlled. Wire rope socketing services are often required by regulations and industry standards to ensure compliance with safety and quality standards. Wire rope socketing services help prevent wire rope failure by ensuring that the wire rope is properly secured and aligned.
The purpose of wire rope destructive testing is to evaluate the mechanical properties of wire ropes under various conditions, including tensile strength, elongation, and break strength. Wire rope destructive testing helps to identify any weaknesses or defects in the wire rope, which can affect its performance and reliability. The test results provide information on the wire rope’s ability to withstand various loads, including tensile, compressive, and impact loads. Wire rope destructive testing helps to ensure that the wire rope meets the requirements of relevant industry standards, such as those set by the American Petroleum Institute (API) or the International Organization for Standardization (ISO).
