THERMOGRAPHY INSPECTION IN SAUDI ARABIA

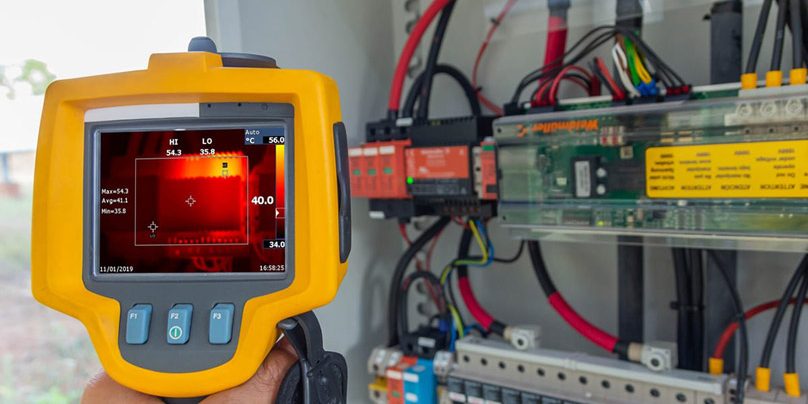

EIWAA Marine Services offers NDT Inspection Services of Thermal Imaging and Thermography Testing Services in Saudi Arabia for serving offshore rigs and vessels. Our thermography testing services help offshore rigs maintain regulatory compliance by ensuring that all systems are operating within safe temperature parameters. This condition-monitoring inspection service by Non-Destructive Testing shall be used along with Noise Testing, Vibration Monitoring and other condition-monitoring inspection services. A non-invasive technique for measuring significant electrical leakages in electrical panel switchboards is the infrared thermography inspection service. Relative measurements of infrared radiation energy are used in electrical switchboard inspection techniques. EIWAA Marine Services provides thermal imaging services for electrical switchboards and panel boards as a part of fairground Inspection services in Saudi Arabia.
To understand the importance of temperature variations in thermography inspection services, a basic understanding of heat flow and the thermal behavior of materials is required. Convection (heat flux) devices, optical pyrometers, infrared radiation thermometers, infrared line scanners, and infrared thermal imaging (thermographic) equipment are some examples of non-contacting devices. The non-contact, non-intrusive, non-destructive mapping of temperature patterns on the surface of objects, is known as infrared thermography.
WHY CHOOSE OUR THERMAL IMAGING SERVICES
Thermograms are thermal images created by infrared thermal imaging equipment. With IR Electrical Inspections, ship owners and electrical engineers may identify and fix electrical issues before they are used, and the downtime can be decreased by using thermal imaging. Applications of Thermal Imaging services include temperature monitoring of residential buildings, Marine, Industrial and Commercial sector. All the condition monitoring technicians are well trained from our NDT training and certification courses apart from the OEM/ASNT Level II Certifications.
Electrical Leak Detection
Building Leaks
Furnaces/Boilers
Offshore Rigs
PAT TESTING SERVICES IN SAUDI ARABIA
Our PAT Testing Services in Saudi Arabia are used to ensure that electrical appliances are safe to use and compliant with HAS Regulations. These Portable Appliances Testing Services cover the oil and gas field, Industrial Field and Marine Industry. The scope of PAT testing services is used to identify and prevent electrical hazards as well as to reduce the risk of electrical accidents, fires, and shocks.
Types of PAT Testing Services are,
- Visual Inspection
- Earth Continuity Test
- Insulation Resistance Test
- Electrical leakage Test etc.
Our Electrical Engineers conduct annual earth Continuity Testing and inspections to ensure any exposed metal parts are properly connected to the earth. Insulation Resistance Testing Services measures the effectiveness of insulation and there is no possibility of short circuits. Electrical Leakage testing services measure current leakage from the appliances to the earth.
EARTH TESTING AND MEGGER TESTING SERVICES
Our Earth pit testing services as well as Megger testing services in Saudi Arabia for electrical installations are used for evaluating the insulation resistance of various electrical components in the Oil and gas field. Various Electrical components are wiring, motors and transformers. Megger testing Services in Saudi Arabia are used for the following,
- Electrical Testing and Installation
- Motor Testing
- Transformer Testing
- Generator Testing
- Switch gear and Panel board Inspection
Our Megger Insulation Resistance tester generates C Voltage to measure insulation resistance and is available at various voltage ratings of 250V, 500V, 1000V, 2500V, and 5000V. We are performing Annual and Biannual Megger testing services based on the customer/code requirements.
FREQUENTLY ASKED QUESTIONS
Applications are Electrical Leak Detection by thermal Imaging services in buildings, Boilers, furnaces, ships, vessels and offshore rigs. Thermographic Surveys are used for Building Inspection as Concrete slab leakage and civil structural foundation leakages, mechanical inspection etc. Marine Thermographic Surveys for Ships/Vessels to find out the electrical leakages. Boiler/Furnace Inspection by thermal Monitoring to find out the temperature differences.
- MIL-STD-2194, Military Standard: Infrared Thermal Imaging Survey Procedure for Electrical Equipment (12 Feb 1988)
- ASTM C 1060-90. Standard practice for thermography inspection of insulation installations in envelope cavities of frame buildings
- ASTM E1933 – 99A. Standard test methods for measuring and compensating for emissivity using infrared imaging radiometers.
- ASTM C 1153-97. Standard practice for location of wet insulation in roofing systems using infrared imaging.
- ANSI ASHRAE 101-1981. Application of Infrared Sensing Devices to the Assessment of Building Heat Loss Characteristics.
- DIN 54190-1, 2 and 3. Non-destructive testing – Thermography testing
- NF A09 420. Infrared thermography – equipment characterization
Thermographic Surveys and Thermal Imaging Services at offshore rigs are used to find out the temperature difference and electrical leakage inspection of the panel board, switchboard and electrical circuit board. Annual Thermographic surveys and thermography testing services shall be performed periodically to find out periodic replacement, predictive maintenance, energy loss and power audits.
